Definition: FET is an acronym used for “field effect transistor”. It is a three terminal unipolar device in which conduction is manipulated with the help of applied electric field. The name itself gives a brief idea about its working principle, “field effect”, these two words clearly indicates it is a transistor controlled by electric field.
Thus, it is also referred as a voltage controlled device in which only majority charge carriers are involved in the conduction mechanism. It comprises of three terminals, i.e. source, gate, and drain.
- Todiys New 100Pcs for BSS138 JI SOT-23 N-Channel MOSFET Field Effect Transistor BSS138LT1G $9.95 #37. BOJACK IRF3205 MOSFET Transistors 110A 55V N-Channel Power MOSFET TO-220AB (Pack of 10 Pcs) 4.4 out of 5 stars 33.
- FET have a high input impedance and they are controlled by voltage. FETs are used as an amplifier or a switch in analog and digital circuits.
The circuit symbol described in the below diagram clearly illustrates the three terminals of field effect transistor.
History of Field Effect Transistor
In the year 1926, the idea of field effect transistor (FET) was introduced by Lilienfield. After this in the year 1935, Heil had also put light on field effect transistor. But by this time FETs were not much popular. It was in the year 1940, the significance of FETs gain momentum. This is because during the 1940s the research was going on semiconductors at Bell laboratories.
Significance of FET
Before discussing the significance of FET, I would like to share the crucial concept regarding FET. The transistor in its name is often confused with a bipolar transistor. But there exists a vast difference between FET and BJT, i.e. bipolar transistor.
Although both are transistors and both, involve conduction of current and also both have three terminals, but the similarities end here. The BJT uses injection and collection of minority charge carriers, and this process of injection and collection is done during forward biasing of the P-N junction. On the contrary, the FETs uses an electric field to vary the depletion width during reverse biasing of the junction.
Thus, the conduction in BJTs involve majority carriers as well as minority carriers, but the conduction mechanism in FETs is only due to majority charge carriers. This is the reason FETs are termed as a unipolar device.
Water Analogy to understand the concept of FET
To understand how an FET works, let’s use an analogy. Analogies often make things simple to understand even a complex concept. The water source can be understood as the source of FET, the vessel which collects water is analogous to the drain terminal of FET. Let’s have a quick look at the below diagram, after that understanding the concept of FET will be a cake walk.
Now, can you guess what gate terminal is analogous to? If you are thinking of water tap then yes, you are correct. It is nothing other than the controlling tap which controls the flow of water. Now, the way in which the controlling tap modulate the quantity of water coming from the outlet, in the same way, the voltage at gate terminal controls the flow of current from source to drain terminal.
Construction and Working of FET
The semiconductor is the basis of all FETs. Depending on the channel we are using, i.e. N-channel or P-channel, the semiconductor specimen will be used. If we are designing N-channel JFETs, then the channel will be of an N-type semiconductor. And in the middle of the opposite phases of the specimen will be diffused with the P-type semiconductor.
The P-type semiconductor bar will act as a gate terminal. The opposite ends of the P-type semiconductor will be connected together to form a common gate terminal. Thus, there will be two P-N junctions on either side of the gate, and that will be termed as source and drain terminal.
Components of FETs
- Channel: This is the area in which majority charge carriers flow. When the majority charge carriers are entered in FET, then with the help of this channel only they flow from source to drain.
- Source: Source is the terminal through which the majority charge carriers are introduced in the FET.
- Drain: Drain is the collecting terminal in which the majority charge carriers enter and thus contribute in the conduction procedure.
- Gate: Gate terminal is formed by diffusion of a type of semiconductor with another type of semiconductor. It basically creates high impurity region which controls the flow of carrier from source to drain.
Classification of FETs
The classification of FET can be understood with the help of chart described in the below image. The FETs are mainly described in two types that are JFET (Junction field effect transistor) and Insulated Gate field effect transistor.
Junction Field Effect Transistor: The junction FET is nothing but the FET in which conduction is established by variation of depletion width when the junction is reversed biased. It comprises of two types according to the construction that is N-Channel and P-Channel.
Insulated Gate Field Effect Transistor: The insulated gate FET is one in which gate is insulated by an insulation material from the semiconductor specimen. These are of two types MESFET (Metal Semiconductor Field Effect Transistor) and MISFET (Metal-Insulator-Semiconductor Field Effect Transistor).

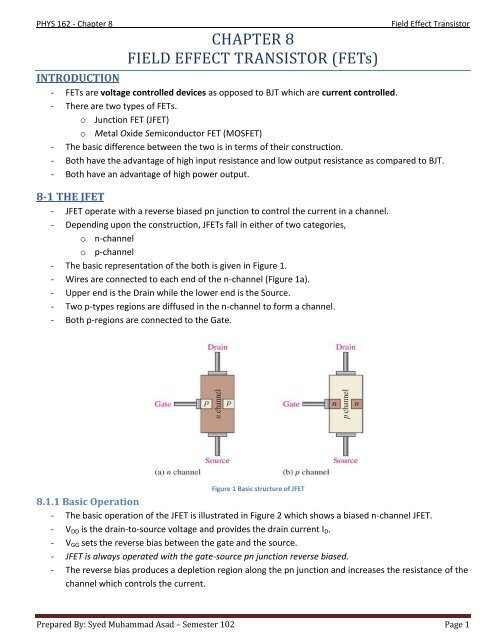

Field Effect Transistors Pdf
Both MESFET and MISFET uses metal-semiconductor junction rather than conventional P-N junction. But the feature that distinguishes both is the use of insulation material in case of MISFET while there is no insulation material in MESFET.
MOSFET is the subtype of MISFET in which oxide layer plays a crucial role in providing insulation between the gate and other terminals. MOSFETs work in two modes that are Depletion mode and Enhancement Mode. In depletion mode, there exists a physical channel while it is not so in Enhancement mode.
The depletion and enhancement MOSFET can again be designed in two ways by using N-channel or P-channel. This was the brief description about FETs.
Related Terms:
FET, Field Effect Transistor, Tutorial Includes:
FET basicsFET specsJFETMOSFETDual gate MOSFETPower MOSFETMESFET / GaAs FETHEMT & PHEMTFinFET technology
The field effect transistor, FET is a key electronic component using within many areas of the electronics industry.
The FET used in many circuits constructed from discrete electronic components in areas from RF technology to power control and electronic switching to general amplification.
However the major use for the field effect transistor, FET is within integrated circuits. In this application FET circuits consume much lower levels of power than ICs using bipolar transistor technology. This enables the very large scale integrated circuits to operate. If bipolar technology was used the power consumption would be orders of magnitude greater and the power generated far too large to dissipate from the integrated circuit.
Apart from being used in integrated circuits, discrete versions of field effect transistors are available both as leaded electronic components and also as surface mount devices.
Field Effect Transistor, FET history
Before the first FETs were introduced into the electronic components market, the concept had been known for a number of years. There had been many difficulties in realising this type of device and making it work.
Some of the early concepts for the field effect transistor were outlined in a paper by Lilienfield in 1926, and in another paper by Heil in 1935.
The next foundations were set in place during the 1940s at Bell Laboratories where the semiconductor research group was set up. This group investigated a number of areas pertaining to semiconductors and semiconductor technology, one of which was a device that would modulate the current flowing in a semiconductor channel buy placing an electric field close to it.
During these early experiments, the researchers were unable to make the idea work, turning their ideas to another idea and ultimately inventing another form of semiconductor electronics component: the bipolar transistor.
After this much of the semiconductor research was focussed on improving the bipolar transistor, and the idea for a field effect transistor was not fully investigated for some while. Now FETs are very widely used, providing the main active element in many integrated circuits. Without these electronic components electronics technology would be very different to what it is now.
Note on Field Effect Transistor Invention & History:
The field effect transistor took many years to develop. The first ideas for the concept appeared in 1928, but it was not until the 1960s that they started to become widely available.
Read more about the Field Effect Transistor Invention & History Tom quinn kensington palace.
Field Effect Transistor – the basics
The concept of the field effect transistor is based around the concept that charge on a nearby object can attract charges within a semiconductor channel. It essentially operates using an electric field effect - hence the name. Dell n5050 video driver windows 10.
The FET consists of a semiconductor channel with electrodes at either end referred to as the drain and the source.
A control electrode called the gate is placed in very close proximity to the channel so that its electric charge is able to affect the channel.
In this way, the gate of the FET controls the flow of carriers (electrons or holes) flowing from the source to drain. It does this by controlling the size and shape of the conductive channel.
The semiconductor channel where the current flow occurs may be either P-type or N-type. This gives rise to two types or categories of FET known as P-Channel and N-Channel FETs. Microsoft office 2019 mac amazon.
In addition to this, there are two further categories. Increasing the voltage on the gate can either deplete or enhance the number of charge carriers available in the channel. As a result there are enhancement mode FET and depletion mode FETs.
As it is only the electric field that controls the current flowing in the channel, the device is said to be voltage operated and it has a high input impedance, usually many megohms. This can be a distinct advantage over the bipolar transistor that is current operated and has a much lower input impedance.
FET circuits
Field effect transistors are widely used in all forms of circuit from those used in circuits with discrete electronic components, to those employed in integrated circuits.
Note on Field Effect Transistor Circuit Design:
The field transistor transistors can be used in many types of circuits although the three basic configurations are common source, common drain (source follower) and common gate. The circuit design itself if fairly straightforward and can be undertaken quite easily.
Read more about Field Effect Transistor Circuit Design
As the field effect transistor is a voltage operated device rather than a current device like the bipolar transistor, this means that some aspects of the circuit are very different: the bias arrangements in particular. However electronic circuit design with FETs is relatively easy - it is just a bit different to that using bipolar transistors.
Using FETs, circuits like voltage amplifiers, buffers or current followers, oscillators, filters and many more can all be designed, and the circuits are very similar to those for bipolar transistors and even thermionic valves / vacuum tubes. Interestingly valves / tubes are also voltage operated devices, and therefore their circuits are very similar, even in terms of the bias arrangements.
Field Effect Transistor types
There are many ways to define the different types of FET that are available. The different types mean that during the electronic circuit design, there is a choice of the right electronic component for the circuit. By selecting the right device it is possible to obtain the best performance for the given circuit.
Fet Field Effect Transistor Test
FETs may be categorised in a number of ways, but some of the major types of FET can be covered in the tree diagram below.
Field Effect Transistor Tutorial
There are many different types of FET on the market for which there are various names. Some of the major categories are delayed below.
Junction FET, JFET: The junction FET, or JFET uses a reverse biased diode junction to provide the gate connection. The structure consists of a semiconductor channel which can be either N-type or P-type. A semiconductor diode is then fabricated onto the channel in such a way that the voltage on the diode affects the FET channel.
In operation this is reverse biased and this means that it is effectively isolated from the channel - only the diode reverse current can flow between the two. The JFET is the most basic type of FET, and the one that was first developed. However it still provides excellent service in many areas of electronics.
Read more about . . . . junction field effect transistor, JFET.Insulated Gate FET / Metal Oxide Silicon FET MOSFET: The MOSFET uses an insulated layer between the gate and the channel. Typically this is formed from a layer of oxide of the semiconductor.
The name IGFET refers to any type of FET that has an insulated gate. The most common form of IGFET is the silicon MOSFET - Metal Oxide Silicon FET. Here, the gate is made of a layer of metal set down on the silicon oxide which in turn is on the silicon channel. MOSFETs are widely used in many areas of electronics and particularly within integrated circuits.
The key factor of the IGFET / MOSFET is the exceedingly gate high impedance these FETs are able to provide. That said, there will be an associated capacitance and this will reduce the input impedance as the frequency rises.
Read more about . . . . Metal Oxide Silicon FET, MOSFET.Dual Gate MOSFET: This is a specialised form of MOSFET that has two gates in series along the channel. This enables some considerable performance improvements to be made, especially at RF, when compared to single gate devices.
The second gate of the MOSFET provides additional isolation between the input and output, and in addition to this it can be used in applications like mixing / multiplication.
MESFET: The MEtal Silicon FET is normally fabricated using Gallium Arsenide and is often referred to as a GaAs FET. Often GaAsFETs are used for RF applications where they can provide high gain low noise performance. One of the drawbacks of GaAsFET technology results from the very small gate structure, and this makes its very sensitive to damage from static, ESD. Great care must be taken when handling these devices.
Read more about . . . . MESFET / GaAsFET.HEMT / PHEMT: The High Electron Mobility Transistor and Pseudomorphic High Electron Mobility Transistor are developments of the basic FET concept, but developed to enable very high frequency operation. Although expensive, they enable very high frequencies and high levels of performance to be achieved.
FinFET: FinFET technology is now being used within integrated circuits to enable higher levels of integration to be achieved by allowing smaller feature sizes. As higher density levels are needed and it becomes increasingly difficult to realise ever smaller feature sizes, FinFET technology is being used more widely.
Read more about . . . . FinFET.VMOS: VMOS standard for vertical MOS. It is a type of FET that uses a vertical current flow to improve the switching and current carrying performance. VMOS FETs are widely used for power applications.
Although there are some other types of field effect transistor that may be seen in the literature, often these types are trade names for a particular technology and they are variants of some of the FET types listed above.
FET specifications
Apart from selecting a particular type of field effect transistor for any given circuit, it is also necessary to understand the different specifications. In this way it is possible to ensure that the FET will operate to the required performance parameters.
FET specifications include everything from the maximum voltages and currents permissible to the capacitance levels and the transconductance. These all play a part in determining whether any particular FET is suitable for a given circuit or application.
Field affect transistor technology can be used in a number of areas where bipolar transistors are not as suitable: each of these semiconductor devices has its own advantages and disadvantages, and can be used to great effect in many circuits. The field effect transistor has a very high input impedance and is a voltage driven device and this opens it up to being used in many areas.
